05 March 2024
: Case report
Successful Thrombectomy of the Posterior Cerebral Artery P2 Segment in a 61-Year-Old Man with Acute Ischaemic Stroke: A Case Report
Unusual setting of medical care
Paola Palazzo1ADEF*, Eike I. Piechowiak2BDE, Mirjam R. Heldner3ABDEDOI: 10.12659/AJCR.941441
Am J Case Rep 2024; 25:e941441

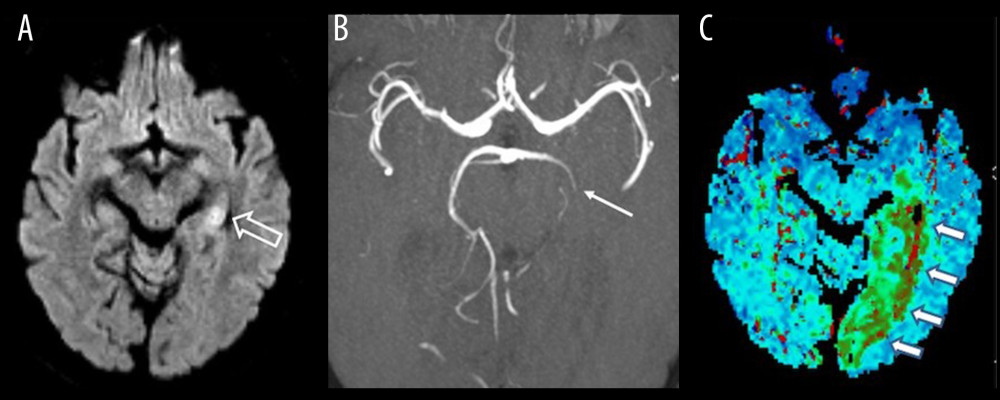

Figure 1. Brain Magnetic Resonance Imaging of a Patient with Left Hippocampal Acute Infarction due to an Occlusion of the Left Posterior Cerebral Artery (PCA) in the P2 segment. Axial diffusion weighted imaging with b=1000 value (A) showing left hippocampal diffusion restriction (thick arrow) consistent with acute ischemic stroke in the PCA territory. Transversal maximum intensity projection time-of-flight image showing occlusion (thin arrow) of the left PCA in the P2 segment (B) with corresponding extensive perfusion deficit (multiple arrows) in the time to peak map (C).
