14 June 2023: Articles  Israel

Atrio-Esophageal Fistula Following Left Atrial Ablation for the Treatment of Atrial Fibrillation: A Report of 2 Cases

Challenging differential diagnosis, Diagnostic / therapeutic accidents, Unusual setting of medical care, Rare disease

Reudor Grinberg ORCID logo1ABDEF*, Eduard Ilgiyaev1ABCDEF, Avigal Rapoport1BF, Yuval Hochman1BF, Danny Miltau1BF, Nina Golman1BF, Yaron Hai1BF

DOI: 10.12659/AJCR.939769

Am J Case Rep 2023; 24:e939769




BACKGROUND: Atrial fibrillation is a common arrhythmia worldwide. The number of patients undergoing ablation as treatment is increasing, as is the incidence of complications from ablation. One such complication is atrio-esophageal fistula, which is rare but life threatening. We discuss 2 cases of patients that presented with a fistula several weeks following atrial fibrillation ablation.

CASE REPORT: A 67-year-old man and 64-year-old woman both had cardiovascular morbidity and chronic kidney disease, diabetes, and other chronic illnesses. Both patients presented approximately 6 weeks after radiofrequency atrial fibrillation ablation and were admitted with varying symptoms, including fever and neurological deficits mimicking a cerebrovascular accident or massive bleeding. Both patients deteriorated very rapidly in the department, especially after certain interventions, such as endoscopy, and exhibited deteriorating neurological signs, including loss of consciousness and basic brain stem reflexes, and head computed tomography (CT) showed widespread infarcts and hemorrhages. Owing to their history, a chest CT was performed at the same time, revealing an atrio-esophageal fistula, which was determined to be the cause of their illness and led to their eventual deaths.

CONCLUSIONS: A rare complication of atrial fibrillation ablation procedure is atrio-esophageal fistula, which if left untreated, is almost uniformly fatal, and even survivors are usually left with significant sequelae. It is important to recognize the rapid deterioration and possible signs and symptoms, such as gastrointestinal bleeding, fever, or even neurological abnormalities, and make the connection to the ablation procedure in terms of timeline for rapid diagnosis and prompt treatment.

Keywords: Atrial Fibrillation, Esophageal Fistula, radiofrequency ablation, Male, Female, Humans, Heart Atria, Atrial Appendage, Catheter Ablation, Disease Progression, Fever


Atrial fibrillation (AF) is a common arrhythmia, and treatment with left atrial ablation is a common procedure [1]. Formation of an atrio-esophageal fistula (AEF), resulting from injury to the esophagus, is a rare and extremely dangerous complication of the procedure [2–4]. The injury is mostly due to thermal energy, but is not limited to that and has been reported in other techniques for ablation, such as focused ultrasound and cryoablation. Some preventive measures can be implemented, including esophageal temperature monitoring and others [5]; however, due to the scarcity of patients, there is no uniform approach to diagnosis, prevention, or treatment, and they are mostly reliant on the vigilance of physicians and a rapid response.

We present 2 such cases of AEF following ablation, with the aim of raising awareness to this rare and potentially fatal complication.

Case Reports


A 67-year-old man had a history of refractory AF, diabetes, arterial hypertension, heart failure with reduced ejection fraction, and chronic kidney disease. Six weeks prior to our hospitalization, he was admitted in another facility with rapid AF that was refractory to treatment and eventually underwent radio-frequency ablation, with no complications reported.

He presented to our facility with a 2-day fever along with left hemiparesis and hematemesis upon entry to the Emergency Department (ED). Head computed tomography (CT) using stroke protocols showed no hemorrhage or major vessel blockage but did reveal acute ischemia in the left distal M3 territory, with no penumbra. He was hospitalized in our Intensive Care Unit (ICU) with the presumption of endocarditis based on the presentation of a febrile illness preceding an embolic cerebral event. By the second day of hospitalization, he rapidly deteriorated with seizures and decreased consciousness, necessitating mechanical ventilation. Repeat CT scan revealed massive ischemic areas in the right middle cerebral artery territories with accompanying edema.

Transthoracic echo showed no vegetation, and due to his hematemesis, a gastroscopy was performed, revealing esophagitis with many blood clots in the stomach; suspicion of a tear was closed with clips. Blood cultures were positive for poly-microbial infection (including multiple streptococcus species).

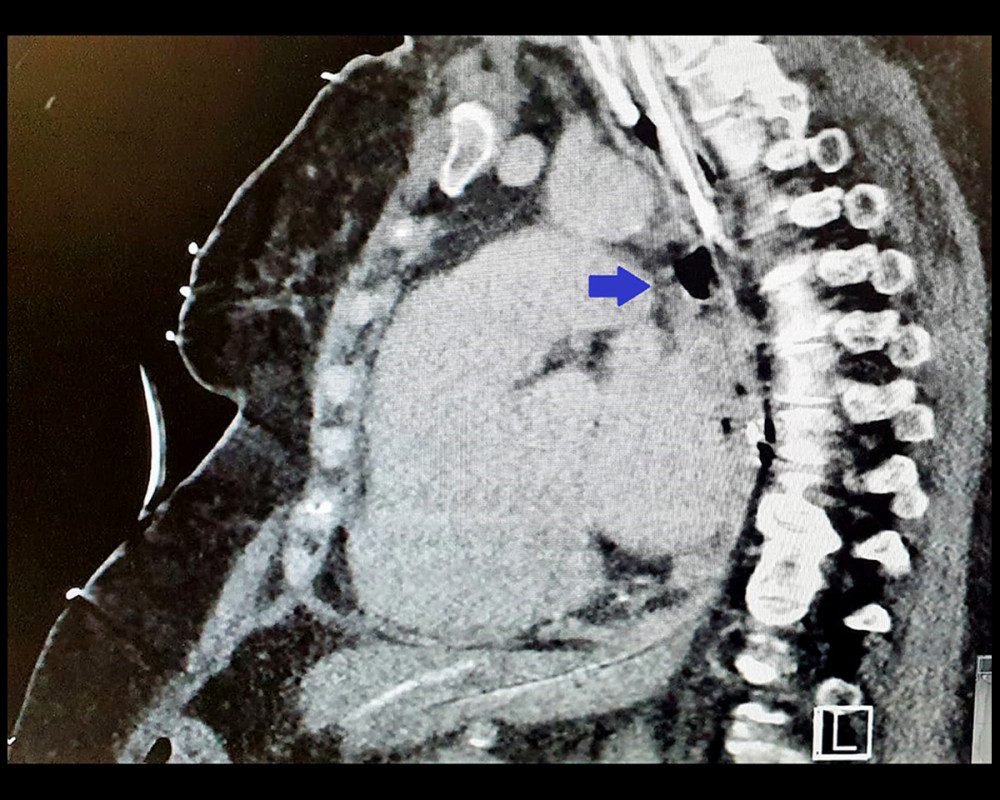

The patient’s condition continued to deteriorate in the next few days, with dilated pupils and lack of brainstem responses, prompting a third CT scan on day 3, which showed extreme edema and herniation. Based on the history of ablation and the endoscopy findings, a chest CT was added, which revealed evidence of AEF (Figure 1). Owing to his clinical condition, we performed a head positron emission tomography, which showed no perfusion. On the fifth day, a committee declared him brain dead, and after withdrawal of care, he soon died.


A 64-year-old woman had a history of AF, arterial hypertension, heart failure with reduced ejection fraction, morbid obesity, restrictive lung disease, and chronic kidney disease. Four weeks prior to our hospitalization, she was admitted in the Cardiac Care Unit with refractory AF and an unsuccessful cardioversion attempt, which led to ablation.

According to her family, she was brought due to a fall at home. Upon arrival to the ED, she developed massive hematemesis and epistaxis. She was urgently ventilated to secure the airways and prevent aspiration. The patient was in a state of extreme shock and was rushed to the operating room, where she underwent gastroscopy, revealing only a small tear and blood clots, which was treated with clipping. Afterward, she was transported to our ICU for further treatment.

During the initial hours, the patient was started on broad-spectrum antibiotics, piperacillin-tazobactam and vancomycin; she also required vasopressors and high ventilation pressures. Following a brief stabilization period, the next morning she went into cardiac arrest following ventricular tachycardia. Despite return-of-spontaneous-circulation, her condition continued to deteriorate, with increasing doses of vasopressor, anuria along with rising creatinine levels, and deepening metabolic acidosis with rising lactate levels. Also, on the following morning, blood cultures revealed S. Pneumoniae.

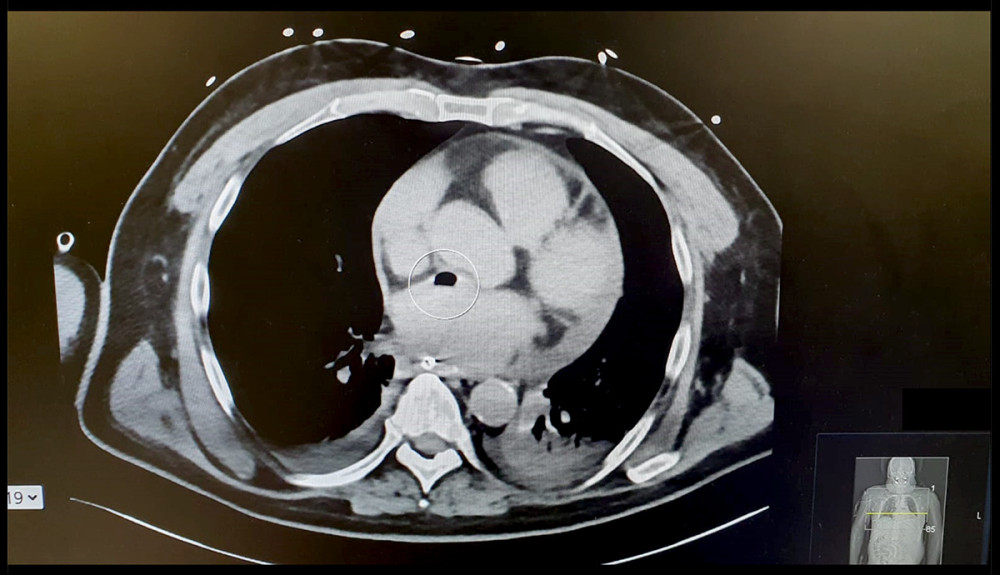

Owing to her medical history and clinical features, we performed a CT scan of the chest and head (Figure 2), which revealed AEF and widespread brain ischemic infarcts in water-shed areas of the left hemisphere along with cerebellum and pons and occipital hemorrhage. The patient’s condition deteriorated, and 5 days after her admission, she died.


AF is an extremely common arrhythmia, with some estimates of 2% to 4% lifetime risk, and AEF following ablation cases have been reported and published since 2001 [1,2]. The pathophysiology is not completely understood; however, it is widely assumed that a constant and high radiofrequency delivered to the posterior atrial wall during ablation leads to thermal damage to the esophagus. Some methods were developed to prevent the complication, some with only esophageal temperature monitoring, but also interventional methods, such as the successful esophageal cooling [3].

While the overall prevalence of AEF as a complication of AF ablation is low (up to 0.25% in some reviews), the outcome is usually fatal in non-interventional cases (as high as 97% in some reports) but still high overall (up to 55%) even with intervention such as surgery or endoscopic repair; of those, few survivors remain unscathed without any sequela, predominately neurological [4–6].

The “classic” clinical presentation is a patient that presents up to 60 days (median 21 days) after AF ablation with signs and symptoms consisting primarily of fever and neurological abnormalities in over 70% of cases, even mimicking a cerebral vascular accident [7]; not uncommonly, such as in our cases, these patients present with hematemesis or even hemorrhagic shock.

Since the mortality approaches 100% without treatment and drops to close to 40% with rapid surgical correction [5], rapid diagnosis is of the utmost importance. Aside from a strong clinical suspicion, the modality of choice for diagnosis is CT of the chest. Transthoracic or transesophageal echocardiography are not sensitive enough, and the latter might even worsen the condition. Unfortunately, in patients such as ours, presentations of massive hematemesis necessitate endoscopy, which in these cases can have disastrous consequences. Both our patients showed rapid and profound deterioration, mostly in the form of neurological deficits clinically and radiographically, shortly after the interventions mentioned, emphasizing the need for early recognition and diagnosis.

Following diagnosis, rapid treatment is necessary, with the main options being esophageal stenting or surgical correction. The latter has better survivability but is not always an option due to anatomical and inflammatory changes. Since the literature on the subject is scarce, and the condition is likely underdiagnosed as well, studies are warranted and some are already underway to strengthen our knowledge on the condition [8].


AEF following AF ablation is a rare condition, but left undiagnosed or mistreated, is rapidly hazardous and even fatal. There should be a high level of vigilance for patients following the procedures that present with infectious or neurological abnormalities, and treatment, if deemed necessary, should be performed as rapidly as possible.


1.. Benjamin EJ, Muntner P, Alonso A, Heart disease and stroke statistics – 2019 update: A report from the American Heart Association: Circulation, 2019; 139(10); e56-e528

2.. Gillinov AM, Pettersson G, Rice TW, Esophageal injury during radiofrequency ablation for atrial fibrillation: J Thorac Cardiovasc Surg, 2001; 122(6); 1239-40

3.. Cooper J, Joseph C, Zagrodzky J, Active esophageal cooling during radiofrequency ablation of the left atrium: data review and update: Expert Rev Med Devices, 2022; 19(12); 949-57

4.. Gupta A, Perera T, Ganesan A, Complications of catheter ablation of atrial fibrillation a systematic review: Circ Arrhythm Electrophysiol, 2013; 6(6); 1082-88

5.. Della Rocca DG, Magnocavallo M, Natale VN, Clinical presentation, diagnosis, and treatment of atrioesophageal fistula resulting from atrial fibrillation ablation: J Cardiovasc Electrophysiol, 2021; 32(9); 2441-50

6.. Cappato R, Calkins H, Chen SA, Prevalence and causes of fatal outcome in catheter ablation of atrial fibrillation: J Am Coll Cardiol, 2009; 53(19); 1798-803

7.. Carlo P, Gabriele V, Vincenzo S, Atrio-esophageal fistula after AF ablation: Pathophysiology, prevention & treatment: J Atr Fibrillation, 2013; 6(3); 860

8.. Tilz RR, Schmidt V, Pürerfellner H, A worldwide survey on incidence, management and prognosis of oesophageal fistula formation following atrial fibrillation catheter ablation: The POTTER-AF study: Eur Heart J, 2023 [Online ahead of print]
